In the complex world of industrial piping, the carbon steel elbow serves as a fundamental component that allows for the precise redirection of fluid and gas flow. These fittings are indispensable in maintaining the integrity of high-pressure systems, ensuring that piping networks can navigate architectural constraints without compromising structural stability. Understanding the nuances of their metallurgy and design is critical for engineers aiming to optimize system efficiency and lifespan.
Globally, the demand for high-quality carbon steel elbow components is driven by the expansion of petrochemical plants, power generation facilities, and urban infrastructure projects. As industries shift toward more sustainable and higher-pressure operations, the reliance on standardized, durable fittings becomes paramount to prevent leaks and catastrophic failures. This necessitates a deep dive into the materials science and manufacturing standards that govern these essential parts.
For procurement managers and technical designers, selecting the right carbon steel elbow involves balancing cost, durability, and compliance with international standards like ASME and ISO. By focusing on the correct grade of carbon steel and the precision of the bend radius, operators can significantly reduce maintenance overhead and improve the safety profile of their entire pipeline installation.
Global Industry Context of Carbon Steel Elbows
The global industrial landscape relies heavily on the efficient transport of hydrocarbons and steam, where the carbon steel elbow acts as the critical pivot point. According to standards mirrored by ISO and ASME, the precision of these fittings directly impacts the pressure drop and flow velocity within a system. In emerging economies, the rapid build-out of industrial zones has increased the demand for these components by nearly 15% over the last decade to support energy independence.
However, the industry faces a persistent challenge: the tension between cost-reduction and the stringent safety requirements of high-pressure environments. Substandard fittings can lead to turbulence and erosion, eventually causing pipe wall thinning and leaks. This has pushed global manufacturers to adopt more rigorous quality control measures, ensuring that every carbon steel elbow can withstand the extreme thermal and mechanical stresses found in modern refineries.
Defining the Carbon Steel Elbow and Its Role
In simple technical terms, a carbon steel elbow is a prefabricated pipe fitting designed to change the direction of a pipeline, typically at 45 or 90 degrees. Unlike custom-bent pipes, these elbows are manufactured to specific schedules (wall thicknesses) and radii, providing a standardized way to navigate corners while maintaining a consistent internal diameter to minimize flow resistance.
Beyond mere geometry, these fittings are integral to modern humanitarian and industrial needs, such as the delivery of clean water via high-pressure mains or the transport of natural gas to remote heating stations. By using carbon steel, manufacturers provide a material that offers an optimal balance of strength-to-weight ratio and weldability, making it the primary choice for the bulk of the world's industrial piping.
The role of the carbon steel elbow extends to the safety of the operators. Because carbon steel is predictable under stress, engineers can accurately calculate the fatigue life of a bend, ensuring that the infrastructure serving millions of people remains secure over decades of continuous operation.
Key Factors Driving Performance and Reliability
Durability is the first cornerstone of a high-performance carbon steel elbow. The ability of the steel to resist deformation under high internal pressure depends on the carbon content and the heat treatment process. Proper annealing ensures that the metal retains its ductility, preventing brittle fractures during sudden temperature shifts.
Cost efficiency is achieved through the standardization of the carbon steel elbow. By adhering to universal dimensions, industries can source replacements quickly and reduce the need for expensive on-site custom fabrication, which significantly lowers the total cost of ownership for large-scale pipeline networks.
Scalability and versatility allow these fittings to be used in everything from small-scale factory loops to massive cross-country transmission lines. Whether it is a short-radius elbow for tight spaces or a long-radius version for reduced friction, the carbon steel elbow provides the architectural flexibility required for complex engineering.
Practical Applications Across Global Sectors
The implementation of the carbon steel elbow is evident across diverse environments. In the oil and gas sector of the Middle East, these fittings are used in massive desalination plants to move brine and fresh water. In the industrial heartlands of East Asia, they form the backbone of chemical processing plants where precise routing of volatile substances is a matter of extreme safety.
Furthermore, in remote industrial zones or post-disaster reconstruction, the modular nature of the carbon steel elbow allows for rapid deployment of essential utilities. Because they can be easily welded to various pipe schedules, they facilitate the quick assembly of temporary heating or water lines in challenging terrains where precision machinery is unavailable.
Performance Comparison of Carbon Steel Elbow Types
Long-Term Value and Economic Advantages
The long-term value of investing in a premium carbon steel elbow manifests in reduced downtime. While cheaper alternatives might save initial capital, the superior fatigue resistance of high-grade carbon steel prevents the need for frequent replacements. This creates a cycle of reliability that fosters trust between infrastructure providers and the public.
From a sustainability perspective, the longevity of these fittings reduces the carbon footprint associated with manufacturing and transporting replacement parts. When paired with anti-corrosion coatings, a carbon steel elbow can serve a plant for 30 to 50 years, representing a logical and emotionally reassuring investment in the safety and stability of industrial operations.
Future Trends in Fitting Metallurgy
As we move toward a greener economy, the carbon steel elbow is evolving. New alloying elements are being introduced to improve resistance to hydrogen embrittlement, preparing these components for the transition to hydrogen-based energy grids. This digital transformation in materials science allows for "smarter" steel with better grain structure control.
Automation in manufacturing is also playing a key role. Advanced CNC bending and laser-scanning quality control ensure that every carbon steel elbow has perfectly concentric walls, reducing turbulence and increasing the energy efficiency of the pumps driving the fluid.
Finally, there is a growing trend toward integrated monitoring. Future iterations of the carbon steel elbow may incorporate embedded sensors or smart coatings that can signal wall thinning or corrosion to a central control room, shifting maintenance from a reactive to a predictive model.
Challenges and Expert Solutions in Implementation

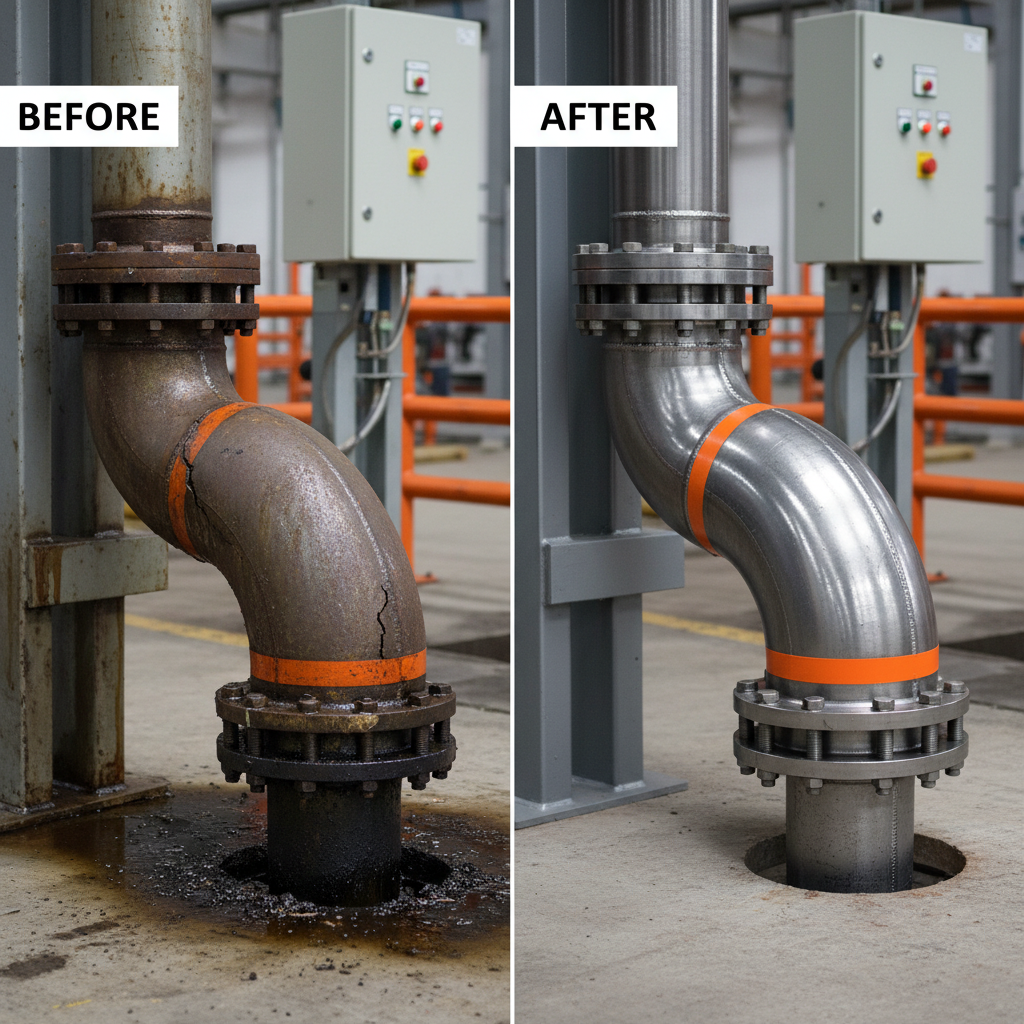

One of the most common challenges when installing a carbon steel elbow is stress corrosion cracking, especially in saline or acidic environments. To combat this, experts recommend the use of specialized external cladding or high-performance epoxy coatings. Proper weld profiling is also essential to ensure that no stress concentrations are created at the joint.
Another hurdle is the alignment of fittings in large-scale installations. Even a slight deviation in the angle of a carbon steel elbow can introduce parasitic loads into the piping system, leading to premature failure of supports. The solution lies in the use of precision jigs and digital alignment tools during the construction phase.
Ultimately, the key to overcoming these limitations is a holistic approach to system design. By selecting the appropriate schedule and radius for the carbon steel elbow based on the specific fluid dynamics of the project, engineers can eliminate the root causes of erosion and vibration, ensuring a seamless operational lifespan.
Technical Comparison of Carbon Steel Elbow Specifications
| Fitting Type |
Pressure Rating |
Corrosion Resistance |
Application Suitability |
| Long Radius (LR) |
High (up to 6000 PSI) |
Moderate (Coating Req) |
High-flow liquid lines |
| Short Radius (SR) |
Moderate (up to 3000 PSI) |
Moderate (Coating Req) |
Tight space piping |
| ASTM A234 WPB |
Very High |
Standard Industrial |
General petrochemical |
| ASTM A420 WPL6 |
High (Low Temp) |
High Impact Toughness |
Cryogenic/Cold climates |
| Seamless Grade |
Extreme |
High (No weld seams) |
Ultra-high pressure gas |
| Galvanized CS |
Moderate |
Very High (Zinc Layer) |
Water distribution |
FAQS
A long radius (LR) carbon steel elbow has a bend radius 1.5 times the nominal pipe size, which reduces friction and pressure drop, making it ideal for high-flow systems. A short radius (SR) elbow has a radius equal to the nominal pipe size, which is more compact and suitable for installations with limited space, though it creates more turbulence.
The choice depends on the operating temperature and pressure. For general service, ASTM A234 WPB is the industry standard. For low-temperature environments where impact toughness is critical, ASTM A420 WPL6 is preferred. Always consult the piping specification (Pipe Class) to ensure the grade matches the fluid's chemical properties and temperature.
Carbon steel is not inherently corrosion-resistant. For corrosive media, a carbon steel elbow must be internally lined (e.g., with PTFE) or externally coated. In extremely aggressive environments, stainless steel or alloy fittings are recommended. However, for many industrial fluids, carbon steel with proper corrosion inhibition is both cost-effective and durable.
Quality is verified through several tests: Non-Destructive Testing (NDT) such as X-ray or Ultrasonic testing to check for internal voids, Hydrostatic testing to ensure pressure integrity, and Material Test Reports (MTRs) to verify the chemical composition and mechanical properties of the steel.
Yes, but it requires specific procedures. You cannot use standard carbon steel electrodes; instead, a filler metal such as E309L is used to create a transition weld. This prevents carbon migration and minimizes the risk of cracking at the interface between the two different metals.
The most common causes are erosion-corrosion (where high-velocity fluid wears down the bend) and stress corrosion cracking. These are typically caused by incorrect radius selection or failure to apply proper anti-corrosion coatings. Using a long-radius elbow in high-velocity lines often mitigates these risks.
Conclusion
The carbon steel elbow is far more than a simple piece of bent metal; it is a precision-engineered component that ensures the safety and efficiency of the world's most critical infrastructure. From the careful selection of metallurgy to the adherence to global ASME and ISO standards, every detail contributes to a system's ability to transport vital resources without failure. By prioritizing quality over initial cost and implementing expert installation practices, industries can achieve an optimal balance of performance and longevity.
Looking forward, the integration of advanced alloys and predictive monitoring will further elevate the role of these fittings in a sustainable industrial future. As we transition toward hydrogen energy and smarter cities, the reliability of the carbon steel elbow will remain a cornerstone of engineering excellence. For those seeking high-performance piping solutions, visiting our experts is the first step toward a secure infrastructure. Visit our website: www.lion-pipeline.com
